Hi all
In a routing, I'd like to add two tubes of different diameters. I am not sure that this is possible, and if it is, I would like to know how to proceed.
Thank you in advance for the attention given to my question.
You will find attached an image to illustrate my need more clearly.
These are the 2 small verticals.
Yours truly.
Hello, oh a former Oeno
employee in my opinion it's not possible without doing several functions of a welded mechanical element...
Who is behind Scofield?

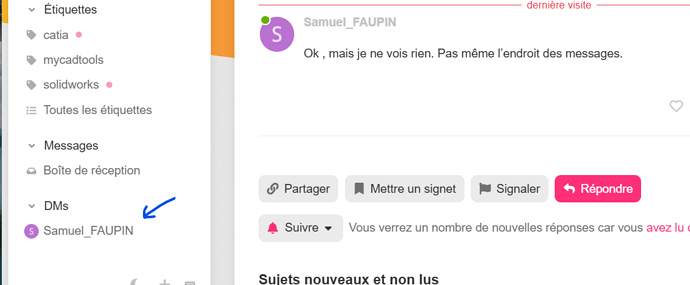

I replied to you in a private message
Ok, but I can't see anything. Not even the place of the messages.
Hello
Is it to make stitching without using a " T "?
https://help.solidworks.com/2021/french/SolidWorks/sldpiping/c_segment_segment_penetration.htm?id=ce8fa17868864ddeac42a29415957995#Pg0
Thank you indeed this method seems to match, the only point that bothers me is that there is a flange which I guess allows you to have a pipe of different diameter.
Yours truly.
For the two small pipes that are located at the bottom right of your image and that will do a stitching, if you don't want to insert an accessory to define their size, you have to right-click on the sketch segment of these pipes, property of the routing segment, and choose the size you want.
Slt I don't have the same presentation, so I don't have access to the message.
