In a mep under SW, I import my dimensions from the objects of the model. So far so good.
But I can't import my dimensions from the hidden sketches used to do a swipe function. Unless I show his sketches, which I would like to avoid.
In the import options, we have: "include hidden function objects", but since it's not a function but a sketch, nothing happens.
Do you know if there is an option or a way to normally have these sketch dimensions hidden without having to display them?
Rq: Hidden sketches are not directly in the swipe function. Because I started with several sketches on several shots, rather than a 3D sketch (maybe because of the weekend!).
@ opiep27 it 's the conversion of your sketches into 1 3D sketches if of course it's the same function that results from it
Have you tried to do an automatic rating
Automatic dimensioning of a drawing
You can use the Auto Dimension tool to insert datum dimensions into drawing views such as baseline dimensions, chain dimensions, or ordinals. The Auto Dimension tool works similarly in sketches.

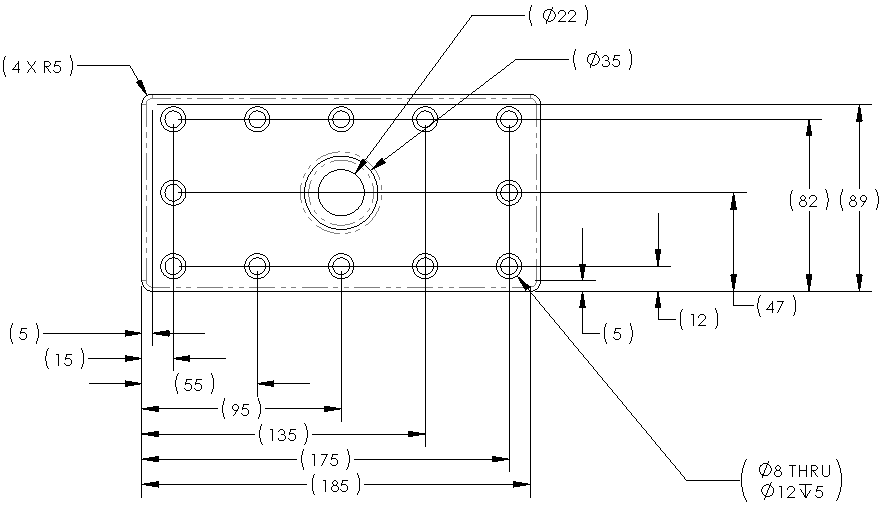

A baseline rating scheme is shown below:
To automatically dimension a drawing:
In a drawing document, click Smart Dimensioning (Dimensions/Relationships toolbar).
@gt22: I must have missed something, how do you transform your 2D sketch into 3D? At the beginning when you choose the type of sketch, then it can't be changed, can it?
Did you want me to convert my 2D sketch strokes into a 3D sketch? If so, that's what I do. And so I don't have the dimensions, and if I add them, they will be piloted.
