How do I subtract one part from another in the document part?
Source http://help.solidworks.com/2016/French/SolidWorks/sldworks/HIDD_DVE_FEAT_COMBINE_BODIES.htm
PropertyManager Combiner
In the Combine PropertyManager , you specify the bodies that you want to add, subtract, or overlap in a multi-body part.
To open this PropertyManager :
In a multi-body part, click Combine (Functions toolbar) or click Insert > Functions > Combine .
You can only combine bodies contained in a multi-body file. You can't combine two separate pieces. However, you can create a multibody part by using the Insert Part option to place one part in the other part file. You can then apply the Combine option on the multibody part.
Type of operation

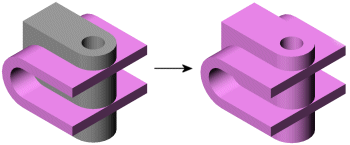

Add | Combines the volumes of all selected bodies to create a single body. |

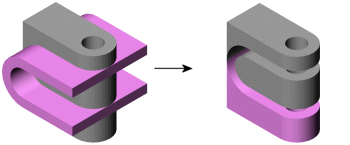

Subtraction | Removes overlapping material from the selected main body. |

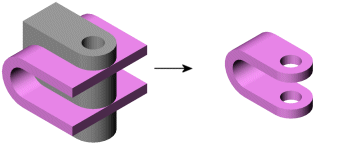

Combine | Removes all material except the overlapping material. |
Body to combine
Available when Operation Type is set to Add or Common.
Solid bodies | Lists the bodies you have selected to combine. You can select the bodies in the graphics area or in the Dimensional Bodies folder in the FeatureManager design tree. Click Show Preview for a preview of the feature. |
Main Body
Available when Operation Type is set to Subtract.
Volume | Lists the components that you have selected to keep. You can select the bodies in the graphics area or in the Dimensional Bodies folder in the FeatureManager design tree. |
Body to subtract
Available when Operation Type is set to Subtract.
Solid bodies | Lists the bodies from which you want to subtract the material. You can select the bodies in the graphics area or in the Dimensional Bodies folder in the FeatureManager design tree. Click Show Preview for a preview of the feature. |
as said you need 2 bodies
The combined subtract function
you select the room(s) to keep
you select the body to combine and subtract
thus
and you end up with that he once select the bodies to keep
if you look at the number of bodies has changed 175 to the liau of 2
magic
@+ ;-)
